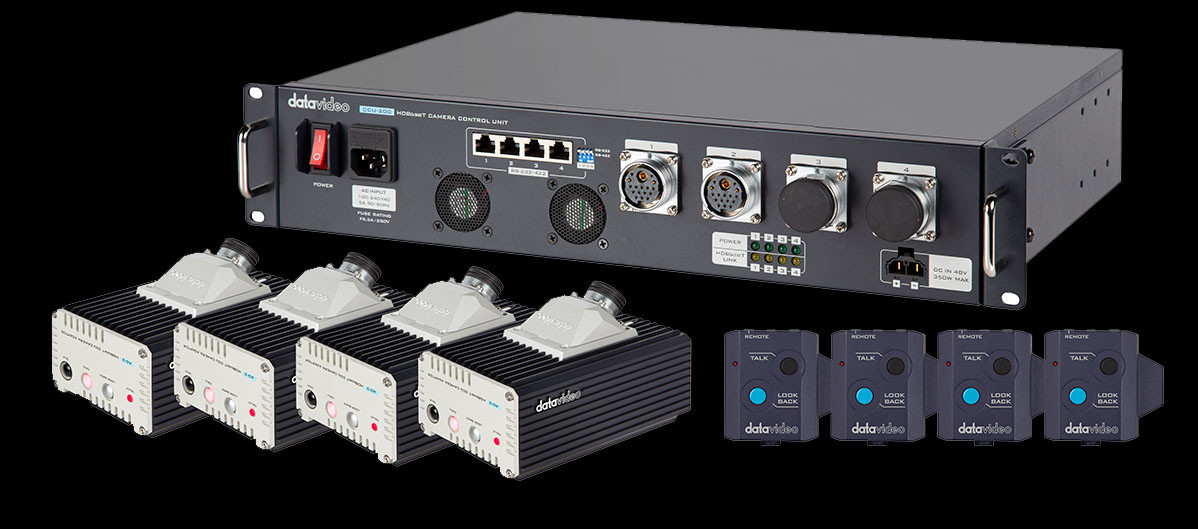

HDBaseT Camera Control Unit CCU-200
- В наличии
- Код: CCU-200
Цену уточняйте
Описание
Built-in HDBaseT technology enables CCU-200 to transmit video, audio and serial communication signals over a single cable thus it can connect virtually any camera and its remote controller that support RS-232 and RS-422 communication protocols.
With a specific all in one cable CB-65/66, the CCU-200 system simultaneously transmit 1080p50/60 video signals for camera video output, return Program video between the cameras and a video switcher. Together with the video, audio, camera control, tally, and intercom signals, CCU-200 also provides power directly to cameras via Datavideo AD-3 adapter over a maximum transmission distance of 100 meters.
Combined with Datavideo ITC-300 digital intercom, CCU-200 allows two-way communication between cameramen and video director. Cameramen can call and talk directly via included AD-3 camera adapter or RMC-240 controller. The AD-3 also provides tally output for on-air LED status.
As long as the DC and AC power are both connected, the UPS function is available. One set of power supplies failed, and the other set of power supplies immediately rescued.
Характеристики
| Основные атрибуты | |
|---|---|
| Производитель | AD |
| Пользовательские характеристики | |
| Power Transmission | Power LED x 4, HDBaseT Link LED x 4 |
| Боковой адаптер камеры | AD-3 |
| Вес | 5.4 kg |
| Видеовход | SDI: BNC x 1 |
| Видеовыход | SDI x 4 |
| Вход камеры | 17 Pin Jack x 4 |
| Кол-во контролируемое камерой | 4 |
| Комплектующие | 1 x CCU-200, 4 x AD-3 Unit, 4 x RMC-230, 4 x Headphone Microphone, 4 x φ3.5 Tally Cable, 4 x φ3.5 Plug to φ3.5 Plug Cable, 3 x Ethernet Cable Connector Set, 2 x 2U Rack Mount Ear, 16 x M5 Screws for Rack Mount Ear, 1 x AD-3 Number Label, |
| Мониторинг композиции для просмотра собственного LCD/OSD меню камеры | Да |
| Мощность | DC 48V, AC 100~240V AC 50/60Hz |
| Номер модели | CCU-200 |
| Поддерживаемые функции | ---- |
| Рабочий диапазон температуры | 0~40 °C |
| Размер (ДхШхВ) | 432 x 300 x 93 mm |
| Расстояние соединения | 100m |
| Совместимые модели камер | ---- |
| Удаленный интерфейс камеры | RJ-45 x 3 |
