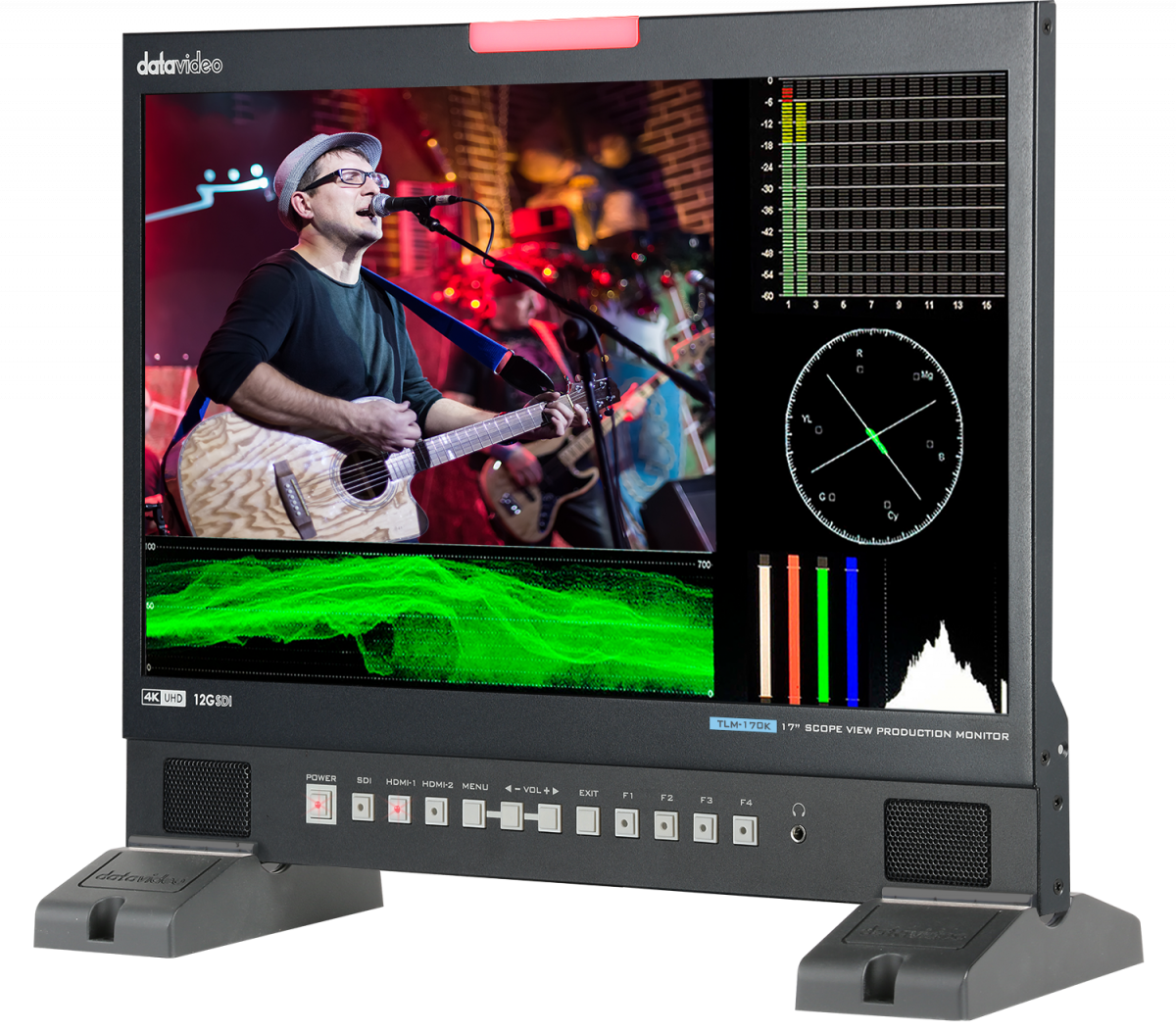

4K 17" ScopeView Production Monitor TLM-170K
- В наличии
- Код: TLM-170K
Цену уточняйте
+7 (700) 750-08-99
возврат товара в течение 14 дней по договоренности
4K 17" ScopeView Production Monitor TLM-170KВ наличии
Цену уточняйте
Описание
Supports DCI P3 color space 4K/60p and UHD 4K/60p video input and output
The TLM-170K series apply superior Ultra HD 3840 x 2160px IPS panel. The high brightness and high contrast panel provides 8 million pixels resolution which is four times the details than Full HDpanel.
The monitor is ideal for presenting 4K HDR (High Dynamic Range) content, revealing the ultimate in detail and clarity for stunning images.
1 x 12G-SDI, 2 x HDMI (HDMI 2.0) inputs;
Support column (YRGB peak), time code, waveform, vector scope, audio vector, focus peaking, zoom, pixel to pixel, exposure, histogram, image flip, camera log, HDR / SDR, and more.
Tally light included. Best use for live production.
Contact us to get more help!
Характеристики
| Пользовательские характеристики | |
|---|---|
| Audio In/Out | Input: Embedded Audio (48KHz sampling), Output: Analog stereo (Phone Jack), Speaker x 2 (3W) |
| Dimension (WxHxD) | 403 x 305 x 37 mm |
| Safty Marker | Да |
| Вес | 5.2kg |
| Видеовход | 1 x 12G SDI, 2 x HDMI (2.0) |
| Дисплей | 17.3" LED Backlit |
| Комплектующие | 1 x TLM-170K product , 1 x AD Switch DC 12V , 1 x Monitor Stand , 2 x Velcro |
| Корпус | Tabletop |
| Маркер аспекта | Да |
| Мощность | DC 12V, 40.1W |
| Номер модели | TLM-170K |
| Особые возможности | waveform, , vector scope, , Focus Peaking, , False Color, , Exposure (Zebras), , Histogram, , HDR / SDR, , Time Code, , Audio Vector, , Camera Log, , Gamma, Marker, , Pixel to Pixel, , Zoom, , H/V Delay, , DSLR, , Freeze, , Image Flip, , Check Field, , Level Meter, , Color Bar, , Color Calibration. |
| Перебор | 1 x 12G SDI, 1 x HDMI (2.0) |
| Поддерживаемые входные разрешения | SDI: , 4096x2160p (23.98/24/25/29.97/30/50/59.94/60), 3840x2160p (23.98/24/25/29.97/30/50/59.94/60), 4096x2160Psf (23.98/24/25/29.97/30), 3840x2160Psf (23.98/24/25/29.97/30), 1920x1080p (23.98/24/25/29.97/30/50/59.94/60), 1920x1080i (50/59.94/60), 1920x1080Psf (23.98/24/25/29.97/30), 1280×720p (23.98/24/25/29.97/30/50/59.94/60), 525i, 625i, HDMI: , 4096x2160p (23.98/24/25/29.97/30/50/59.94/60) , 3840x2160p (23.98/24/25/29.97/30/50/59.94/60) , 1920x1080p (23.98/24/25/29.97/30/50/59.94/60) , 1920x1080i (50/59.94/60) , 1280×720p (23.98/24/25/29.97/30/50/59.94/60) , 720 x480i (NTSC), 720 x576i (PAL) , 640 x800, 800 x600, 1024 x768, 1280 x800 |
| Рабочий диапазон температуры | 0~40 °C |
| Разрешение | 3840 × 2160 |
| Светодиодный индикатор | Live (Red), Cued (Green) |
| Соотношение сторон | 09:04.4 |
| Угол обзора | (H) +89/-89°, (V) +89/-89° |
| Яркость/Контраст | 300cd/m², 1000:1 |
Информация для заказа
- Цена: Цену уточняйте
