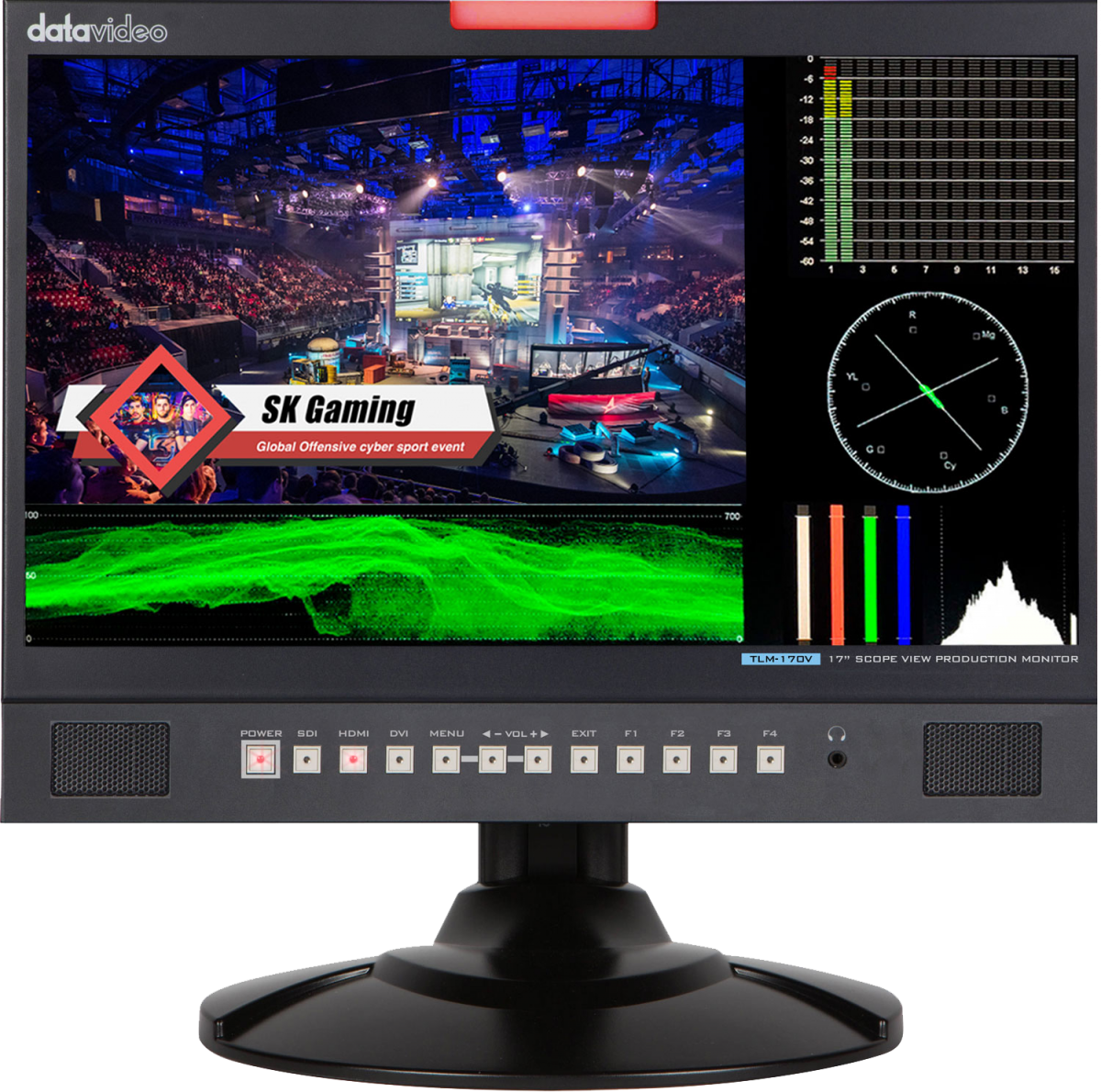

17" ScopeView Production Monitor TLM-170V
- В наличии
- Код: TLM-170V
Цену уточняйте
Описание
1 x 3G/HD/SD-SDI, 2 x HDMI inputs; 1 x 3G/HD/SD-SDI, 1 x HDMI loop through
The TLM-170V can cross convert SDI, HDMI video signals, makes it a great fit to all the video production workflow.
Support column (YRGB peak), time code, waveform, vector scope & audio level meter, peaking, zoom, pix to pix, underscan, check field
Tally light included. Best use for live production.
Datavideo Academy is a comprehensive learning platform established by Datavideo Technology. As a professional Broadcast and AV equipment manufacturer, Datavideo Technology is not only committed to providing quality products to users, but also has the responsibility to help users learn to operate Datavideo products.
Through the Datavideo Academy platform, users can easily master the operation of Datavideo products and experience the unique design of Datavideo products, further creating a variety of applications and bringing a good user experience. Now, a tutorial video for the TLM-170V is available at Datavideo Academy to help you get the best performance out of the product. Please click on the following link.
Характеристики
| Пользовательские характеристики | |
|---|---|
| Audio In/Out | 2x Speaker, 1x Headphone Jack |
| Dimension (WxHxD) | 403 x 305 x 37 mm |
| Safty Marker | Да |
| Вес | 4.5 kg |
| Видеовход | 1x 3G/HD/SD-SDI, 2x HDMI |
| Дисплей | 17.3" LED Backlit |
| Комплектующие | 1 x TLM-170V product , 1 x AD Switch DC 12V , 1 x Monitor Stand , 2 x Velcro |
| Корпус | Tabletop |
| Маркер аспекта | Да |
| Мощность | DC 12V, 21.9W |
| Номер модели | TLM-170V |
| Особые возможности | SDI and HDMI cross Преобразование, , Support column (YRGB peak),, time code, waveform,, vector scope & audio level meter,, peaking focus assist,, zoom, pix to pix,, underscan, check field |
| Перебор | 1x 3G/HD/SD-SDI |
| Поддерживаемые входные разрешения | 1080p(23.98/24/25/29.97/30/50/59.95/60Hz), 1080i(50/59.94/60Hz),, 720p(50/59.94/60Hz), , 576i(PAL), 480i(NTSC) |
| Рабочий диапазон температуры | 0~40 °C |
| Разрешение | 1920x1080 |
| Светодиодный индикатор | Live (Red), Cued (Green) |
| Соотношение сторон | 09:04.4 |
| Угол обзора | (H) +89/-89°, (V) +89/-89° |
| Яркость/Контраст | 300cd/m², 700:1 |
Информация для заказа
- Цена: Цену уточняйте
